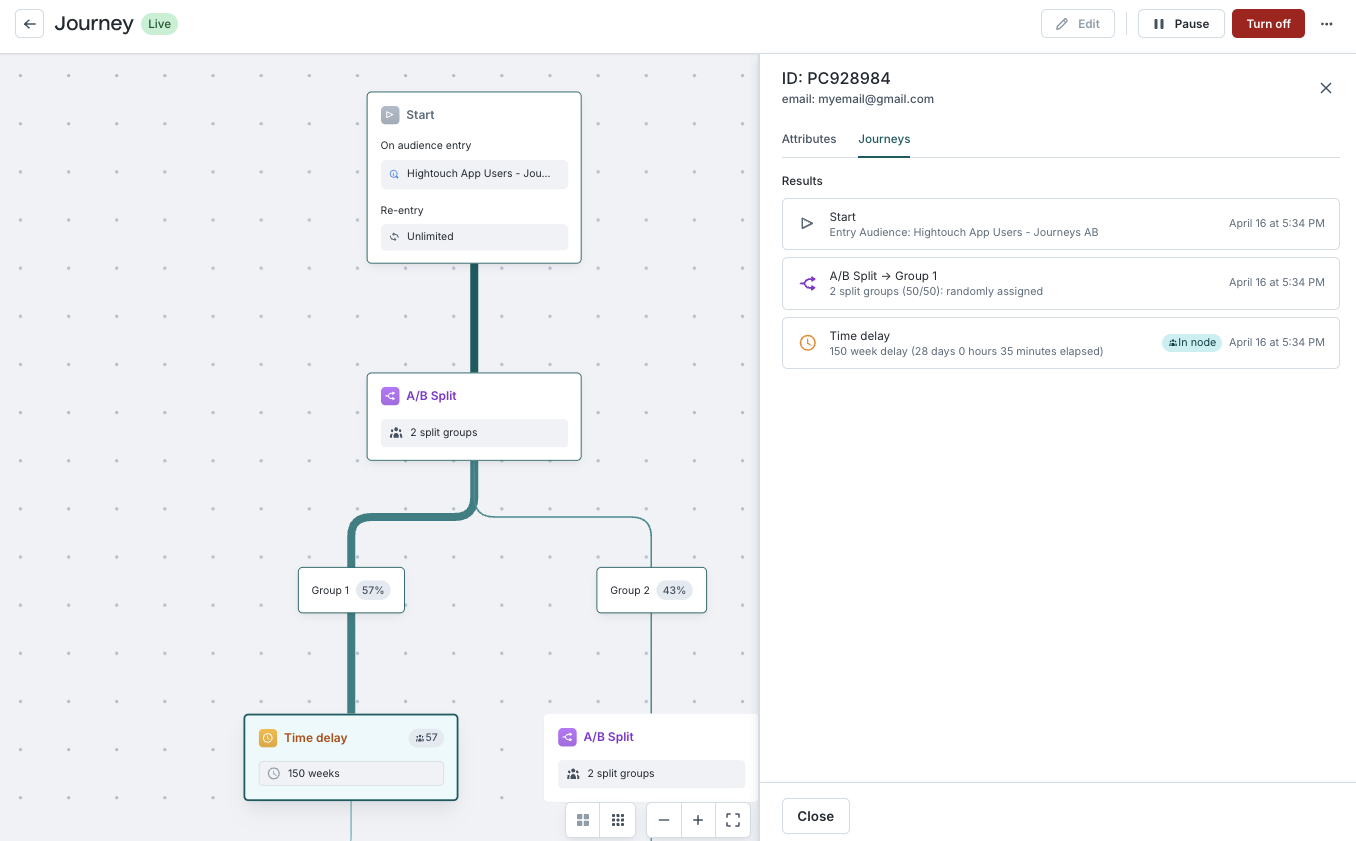

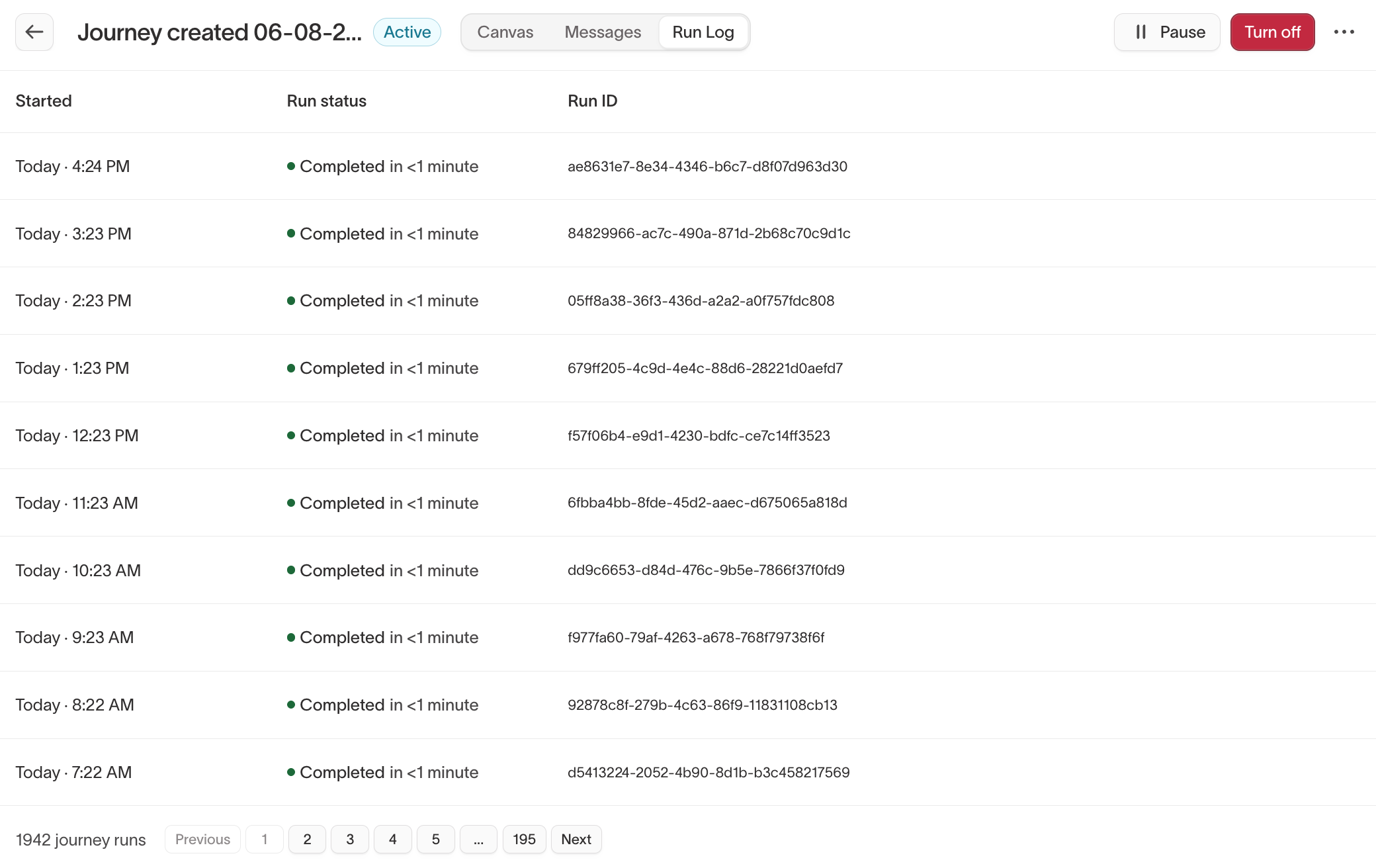

Monitor a live journey from the canvas and performance panel. Use member paths and run logs to investigate unexpected behavior, then pause, edit, or turn off the journey when needed.

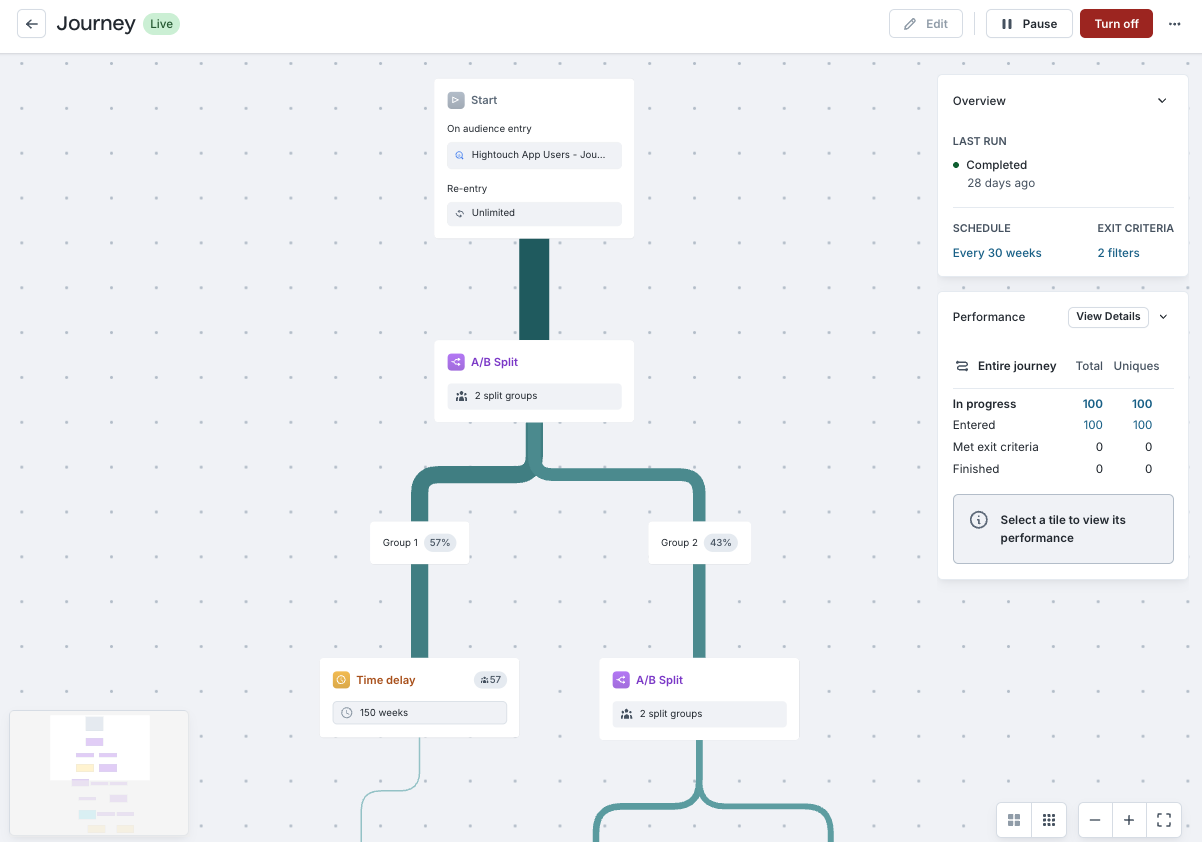

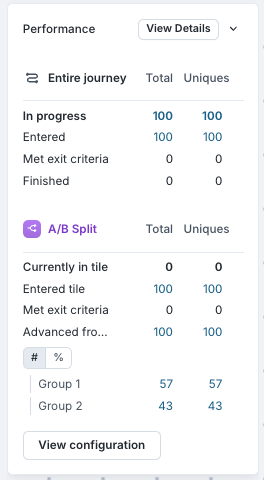

The journey canvas shows how members move through each tile. Line thickness reflects volume. Hover over a line to see counts.The Performance panel shows metrics across the journey’s history unless you reset it:
In Progress — Members currently waiting in a tile.
Entered — Members who have entered the journey.
Met Exit Criteria — Members removed by global exit criteria.
Finished — Members who reached the end.

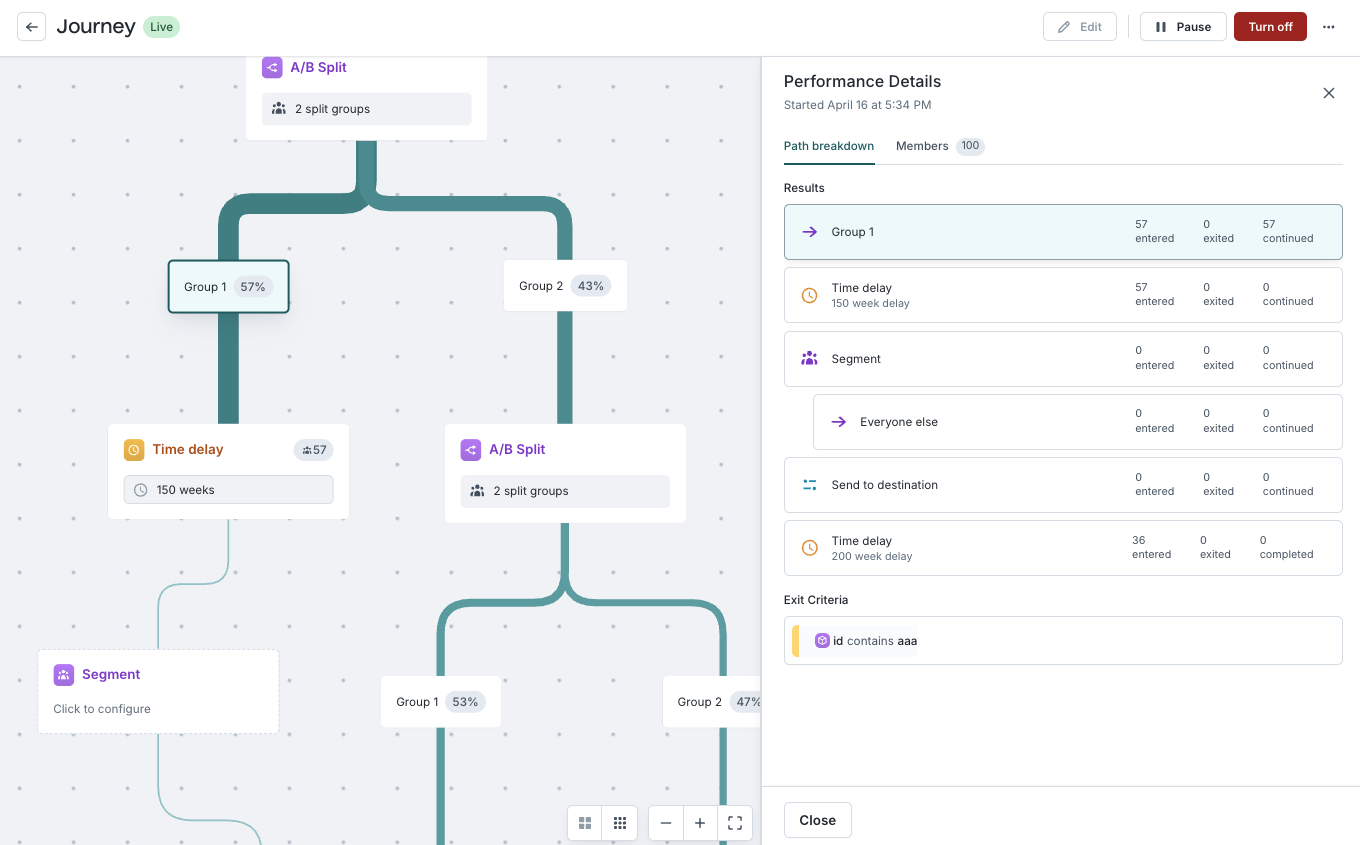

Select a tile to see tile-specific counts. Segment, A/B Split, and Hold until tiles also show per-branch counts and percentages.These counts are cumulative across every run since the journey started, not a point-in-time snapshot, and they count re-entries. Entered, advanced, and exit totals are tallied independently, so they don’t form a strict funnel and won’t always add up. In Progress is the exception — it’s the live count of members waiting in a tile right now.
Hightouch writes journey data to tables in your warehouse under the HIGHTOUCH_PLANNER schema for reporting, debugging, and custom analysis. Workspace-level read-only views in hightouch_audit aggregate data across journeys.See Journey tables and Journey views for schema details.

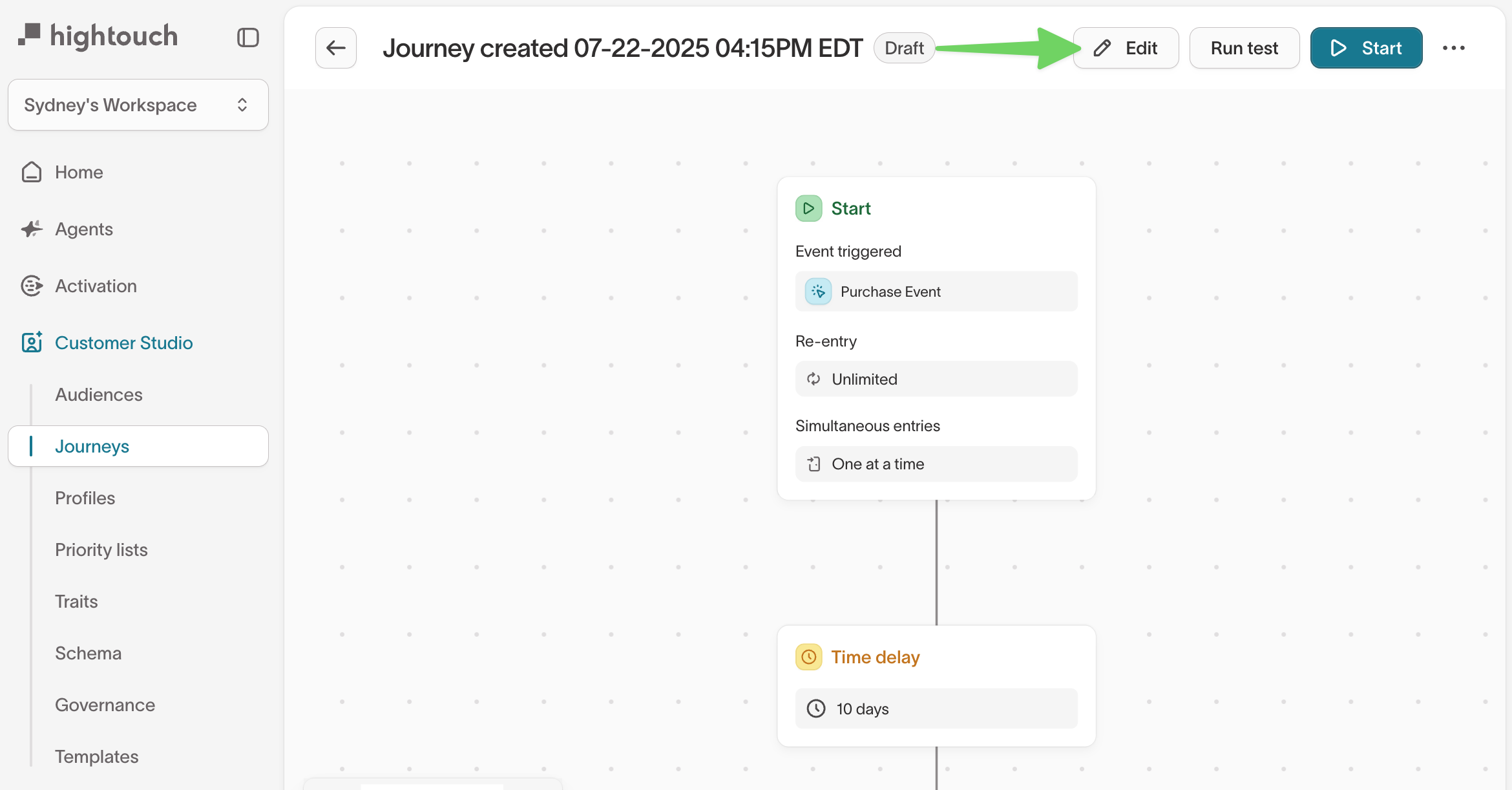

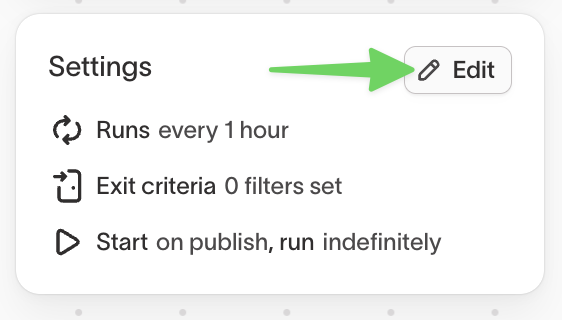

Select Edit on the canvas to update the journey.In edit mode, you can update the journey name, description, evaluation schedule, exit criteria, variables, alerting, and journey tiles.
Editing a live journey affects members already in progress. Members continue
from their current position, but changes to later tiles can change what
happens next. For major changes, create a replacement journey and drain the
existing one instead of editing it in place.
Select Pause to stop evaluations and sync triggering. While paused, members don’t enter, advance, exit, or trigger destination actions.Select Resume to continue evaluation from each member’s current position.

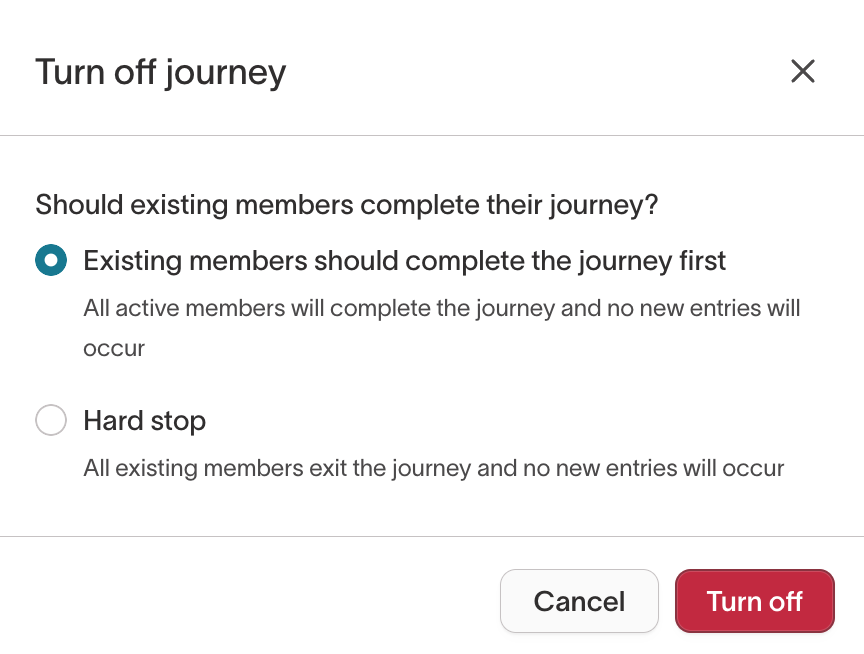

Select Turn off to stop the journey permanently. Choose how to handle members already in progress:

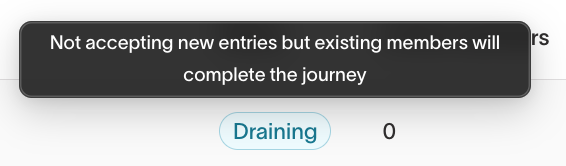

Existing members should complete the journey first(default) — The journey enters Draining. No new members enter, but existing members continue until they finish or exit. The journey becomes Off when no members remain.
Hard stop — All members are removed on the next evaluation run.
Use Draining when retiring or replacing a journey without interrupting members already in progress.

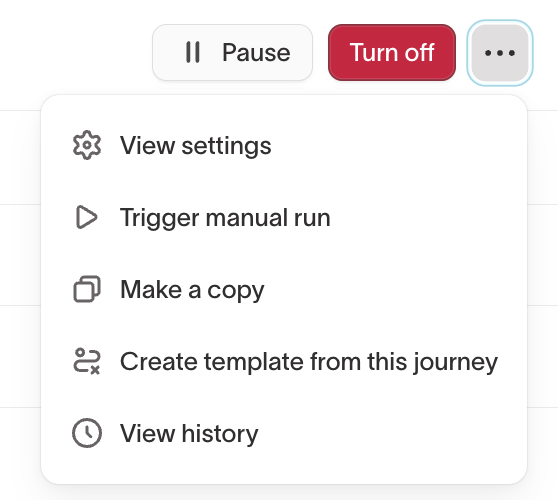

For active journeys, select Trigger manual run from the actions menu to run an evaluation outside the regular schedule.Use a manual run when you need Hightouch to evaluate members after a data refresh or configuration change without waiting for the next scheduled run.

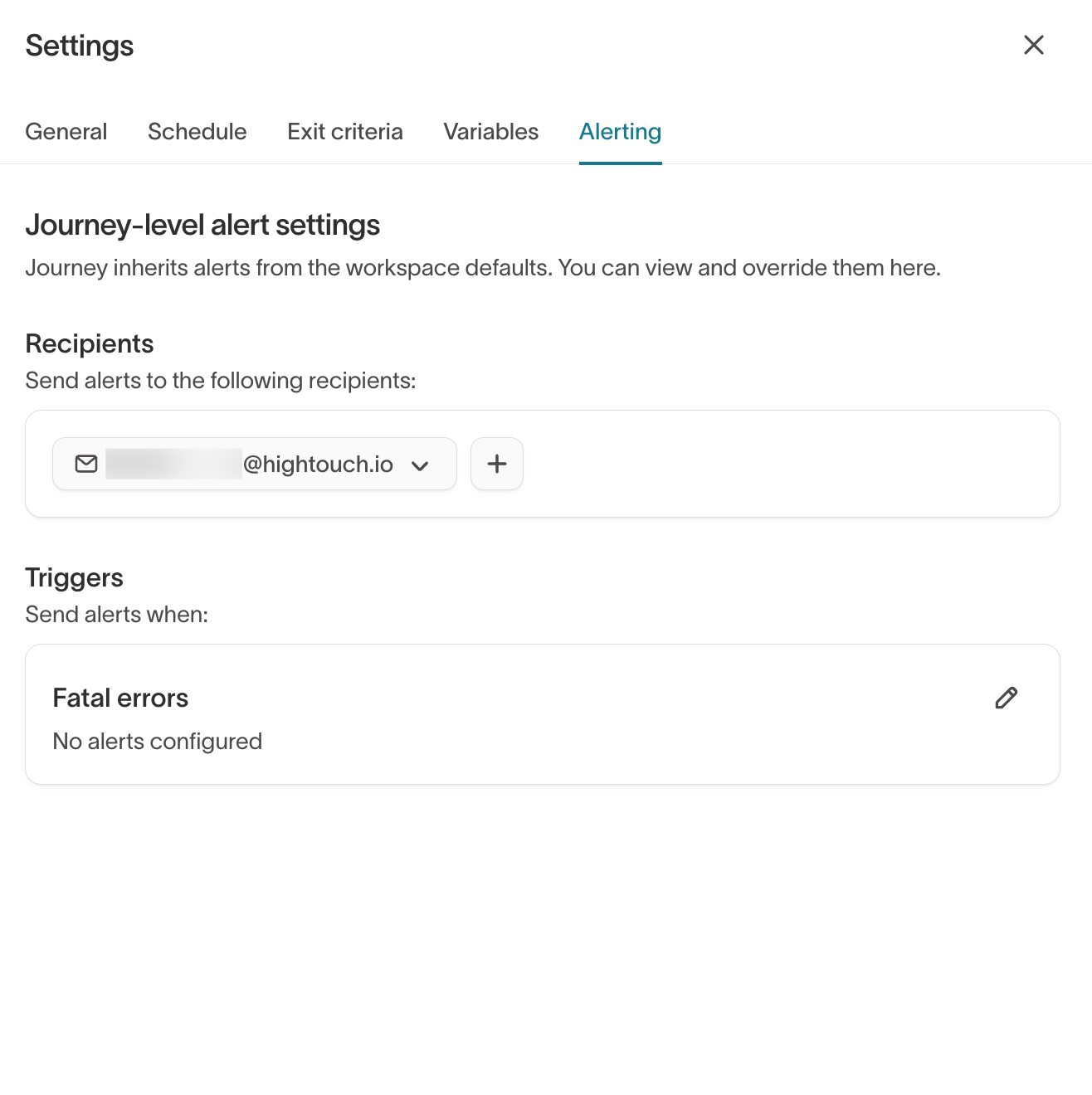

Journey alerts notify you when a run fails. Journeys inherit workspace alert settings, which you can override at the journey level.
Recipients — Send alerts by email, Slack, PagerDuty, SMS, webhook, or another configured channel.
Triggers — Journeys currently support alerts for fatal errors in a journey run, not for failures in the syncs a journey triggers. If no trigger is configured, failures appear in the Hightouch UI only.
Alerts fire on a status change, not on every run: a journey that starts failing sends one alert, further consecutive failures don’t re-alert, and the next successful run sends one recovery alert.Configure workspace defaults under Alerting > Journeys. See Sync alerting.
Entry is checked on each journey run. A member won’t enter if the entry condition isn’t true at run time, the data hasn’t refreshed, or entry settings prevent them from qualifying.Check:
The Start tile entry source, filters, exclusions, and re-entry settings.
For event entry, the event model primary key, selected event, and lookback window.
The journey’s last run time and evaluation schedule.
The entry audience preview.
Whether the member entered and immediately met exit criteria.
Delays or Hold until tiles take longer than expected
Delays and hold conditions are evaluated on journey runs, not continuously. A member advances on the first run after the delay or condition is satisfied.Check:
The delay duration against the journey’s evaluation interval.
Whether multiple delay or hold tiles add additional runs to the total wait.
Whether the journey needs a more frequent schedule.
A journey can process more members than a destination receives, because filtering happens at several stages after journey qualification. Check the stages in order and stop where the count drops. See How journey membership works for the underlying model.Most drops happen on the destination side. Where the count fell, check:
Priority list — audience ranking and overlapping membership, in case a higher-priority audience claimed the member.
Destination rules — the rules applied to the sync, and any subset scoping the audience upstream.
Consent — consent status in the warehouse or OneTrust.
Destination platform — the destination’s delivery logs for suppression or deduplication.
Also check for a Users might never be synced warning on the destination tile. If a cohort sync removes members on exit and the destination tile is the final tile, add a Time delay tile after it so members remain in the cohort for at least one run.
If the Start tile’s error says could not find subsets for this parent model, a subset selected on that tile was deleted. Remove it from the Start tile. See Subsets.
Warehouse credentials and permissions for the parent model’s underlying tables.
Warehouse concurrency or query timeout limits if the failure is intermittent.
Journey alerting so Hightouch notifies you when future runs fail.
Duplicate sends usually come from sync mode, re-entry behavior, or an unstable primary key.Check:
The sync mode on Send to destination. For one-time actions, use Message mode.
The Start tile re-entry settings.
For cohort syncs, the configured removal behavior.
The member path to see whether the member reached the tile once or multiple times.
That the parent model’s primary key is stable and unique. A key that changes — for example, when identity resolution reassigns it — can re-fire earlier sends.
Journey tests evaluate conditions in a single pass with delays skipped. Live runs use real timing, current warehouse data, exit evaluation, cross-journey interactions, and destination behavior.Use:
A journey test to validate branches and conditions.
Test syncs to validate field mappings and payload formatting.
A small live cohort to validate timing, exits, and end-to-end delivery.
Run history and data freshness when comparing test and live results.
